Shortspan shelving
Our Flip shortspan shelving system is very easy to build, and offers an ideal storage solution in, for example, warehouses, storerooms and fire sprinkler areas. This system is tubular and boltless with a choice of shelf types, and fully interchangeable with the extremely strong Fliclass range with all-steel shelves, Flip also comes as containment shelving for workshops, garages or chemical stores, for storing dry non-corrosive polluting products as well as spill containment of liquids..
Shortspan shelving
Flip tubular shelving
Flip shelving is easy to build, boltless tubular shelving with various shelf covers available. Stronger, thinner shelves increase the storage density of the bay. Ideal for hand loaded storage of loads up to 230kgs per bay. Shelves are interchangeable with Filiclass.

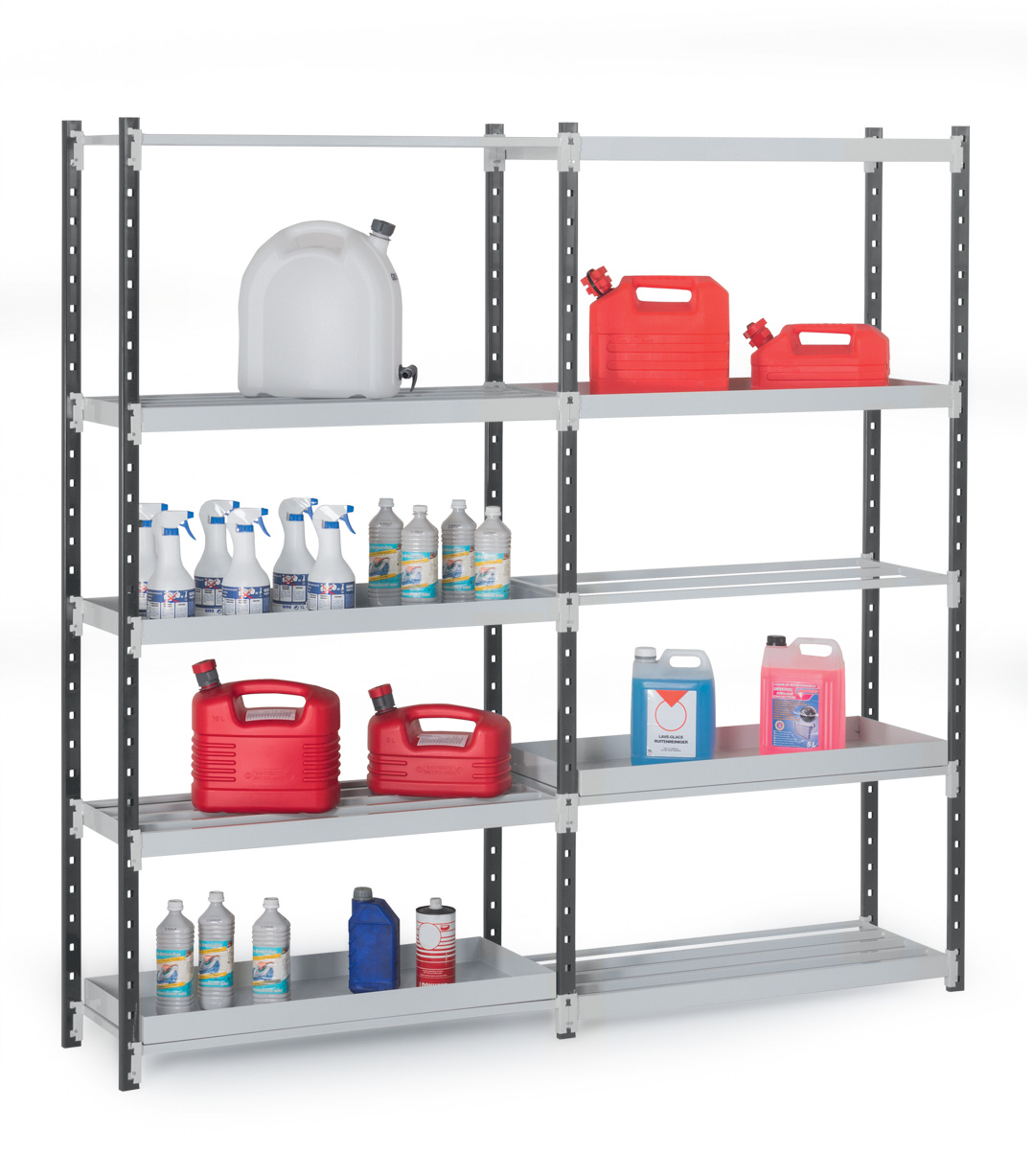

Flip containment shelving
Protect against spills of liquids and dry storage of non corrosive polluting products. Three types of containment trays fit on the flip shelving.
- trays with welded connectors,
- trays with tubular structure collect spills but keeps the bottoms of the product stored dry,
- removable tray sits on top of flip tubular shelves and is removable

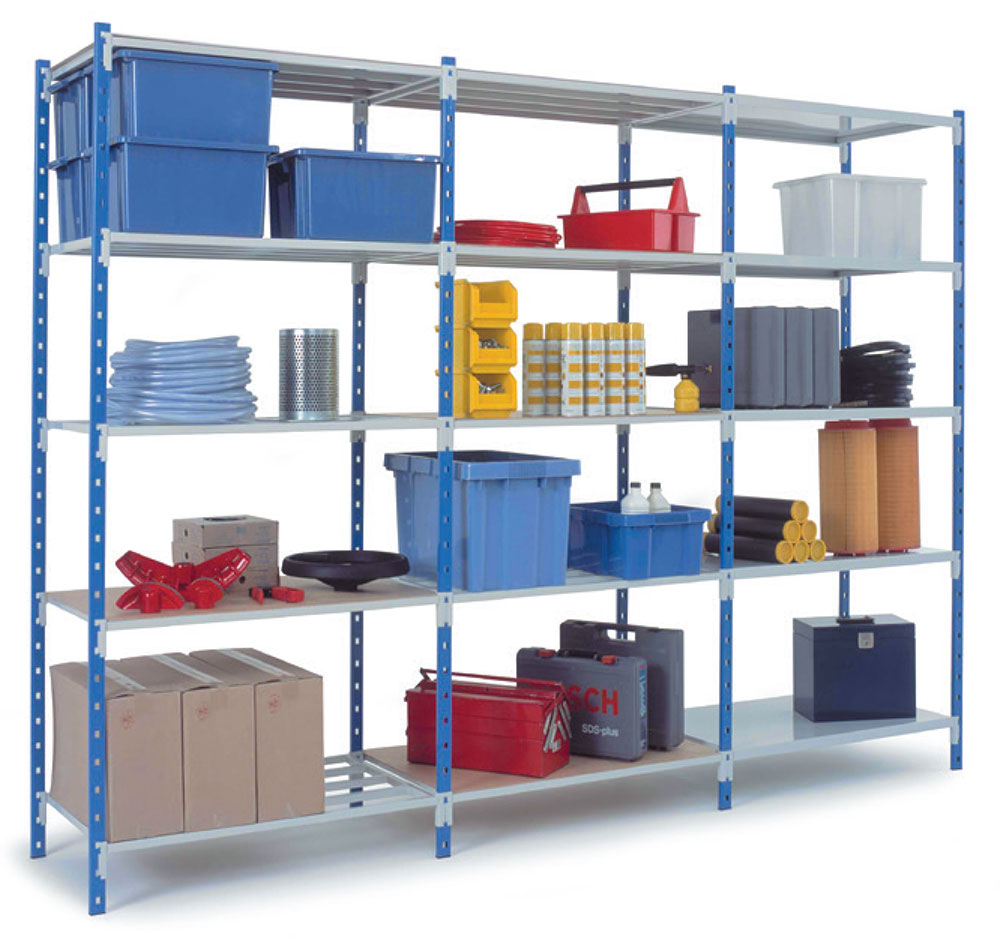

Flip Filiclass
Similar to tubular shelving, except shelves are all steel.
Flip tubular shelving
Extremely strong, heavy duty systems that's easy to build.
| Heights |
Standard Bay Height (mm) 1000, 1250, 1500, 1750, 2000, 2250, 2500, 2750, 3000 |
| Widths | Widths (mm) 750, 1000, 1250, 1500 |
| Depths | Depths (mm) 300, 366, 400, 500, 600, 700, 800, 1000, 1200 |
| Application |
Environment: Warehouse, Storeroom, Fire sprinkler areas Usage: Handloaded, Cardboard boxes, archives, plastic bins, storage boxes |
| Construction |
Frames: Steel Anthracite Beams: Steel Light Grey Shelves Tubular Tubular with hardboard Tubular with white lacquered hardboard Tubular with blue isoflex Tubular with metal sheets Tubular with mesh |
| Loadings |
Shelf UDL up to 230kg per shelf Up to 1500kg per bay |
Flip containment shelving
Extremely strong, heavy duty systems that's easy to build.
| Heights |
Standard Bay Height (mm) 2000, 2500 |
| Widths | Widths (mm) 1000 |
| Depths | Depths (mm) 400, 500, 600, 800 |
| Application |
Environment: Workshop, Garage, Chemical Store, Warehouse, Storeroom Usage: Solid and liquid non corrosive polluting products |
| Construction |
Frames: Steel Anthracite Beams: Steel Light Grey Shelves Tray with welded connectors Tray with tubular structure Removable tray |
| Loadings |
Shelf UDL up to 250kg Max Bay Load 1500kg |
Flip Fliclass shelving
Extremely strong, heavy duty systems that's easy to build.
| Heights |
Standard Bay Height (mm) 1000, 1250, 1500, 1750, 2000, 2250, 2500, 2750, 3000 |
| Widths | Widths (mm) 750, 1000, 1250, 1500 |
| Depths | Depths (mm) 300, 366, 400, 500, 600, 700, 800, 1000, 1200 |
| Application |
Environment: Warehouse, Storeroom, Fire sprinkler areas Usage: Handloaded, Cardboard boxes, archives, plastic bins, storage boxes |
| Construction |
Frames: Steel Anthracite Beams: Steel Light Grey Shelves Tubular Tubular with hardboard Tubular with white lacquered hardboard Tubular with blue isoflex Tubular with metal sheets Tubular with mesh |
| Loadings |
Shelf UDL up to 230kg per shelf Up to 1500kg per bay |
